Preformed Suspension Clamps (SCL)

Purpose

1.The function of preformed suspension clamps is similar to that of common suspension clamps: they are used to suspend conductors and ground wires on transmission towers. The key difference is that preformed suspension clamps not only control guard wires effectively but also greatly reduce corona discharge due to their smooth outer profile. Thus, they are especially suitable for ultra-high-voltage lines (≥220 kV), as well as long-span crossings over rivers and large-angle transmission towers (30–60°) when used as suspension clamps for support points.

2.Preformed suspension clamps utilize preformed suspension sets and preformed guard wires. They are designed to alleviate static and dynamic stresses at support points, protecting conductors and ground wires from wind-induced effects. Meanwhile, they shield guard wires from impact and electrical abrasion at the supports. As an excellent integrated suspension assembly, preformed suspension clamps 3.protect conductors from bending stress, compressive stress, and abrasion.

    Contact us

    Functional Features

    Optimal Stress Distribution
    Preformed suspension clamps distribute the stress acting on the conductor over a large area, significantly reducing the impact of bending, shear, and static stresses. This greatly enhances the conductor’s ability to resist stress. Moreover, when the conductor undergoes galloping or oscillation, it is less likely to be damaged at the suspension point.
    Gripping Force from Preforming
    The preformed strips of the suspension clamp can withstand substantial unbalanced loads on both sides of the suspension point, preventing the conductor from slipping. As a result, conductor abrasion is minimized.
    Anti-aging and Toughness
    The preformed strips of the suspension clamp are made from the same material as the conductor, providing excellent elasticity and toughness. Compared to rigid components like bow-shaped guard wires, they offer stronger resistance to aging and vibration fatigue, ensuring long-term safe operation.
    Superb Electrical Performance
    The unique design of preformed suspension clamps reduces electromagnetic losses. Their smooth, rounded ends (instead of sharp edges) eliminate corona discharge, guaranteeing no corona occurs. When the conductor angle is between 30°–60°, double-hook suspension clamps connect to insulator strings (see the diagram below).

    Preformed Suspension Clamps Series

    Preformed Suspension Clamps (SCL) (1)
    Preformed Suspension Clamps (SCL) (2)
    Preformed Suspension Clamps (SCL) (3)

    Steel Core Aluminum Conductor with Preformed Suspension Clamp (SCL)

    Table C01-1
    Table CO1-2
    Table CO1-3

    Steel Core Aluminum Conductor with Preformed Suspension Clamp Model and Specifications

    Company Product Model Industry Standard Model (GB/T 1179-83: LGJ/LGJF Series) Applicable Conductor Diameter Range - Min. (mm) Applicable Conductor Diameter Range - Max. (mm) Reference Cleat Length (mm) Cleat Weight (kg) Color Code Vertical Breaking Strength (kN) Optional Suspension Loop
    CL-35/6 CL-35/6 8.03 8.31 660 1.1 Red 66 SYB-15-B
    CL-50/8 CL-50/8 9.53 9.88 660 1.1 Pink 66 SYB-15-B
    CL-70/10 CL-70/10 11.05 11.45 914 1.1 Yellow 66 SYB-15-B
    CL-95/15 CL-95/15 13.49 14.78 1041 1.8 Yellow 66 SYB-15-B
    CL-95/20 CL-95/20 13.79 14.1 1118 1.7 Black 66 SYB-15-B
    CL-120/7 CL-120/7 14.11 14.46 1118 1.7 White 66 SYB-15-B
    CL-120/20 CL-120/20 14.57 15.14 1183 1.7 Brown 66 SYB-15-B
    CL-120/25 CL-120/25 15.42 15.7 1408 1.7 Purple 66 SYB-15-B
    CL-150/8 CL-150/8 15.75 16.39 1270 1.9 Red 66 SYB-15-B
    CL-150/25 CL-150/25 16.4 17.1 1372 2.2 Blue 66 SYB-15-B
    CL-150/35 CL-150/35 17.11 17.54 1372 2.2 Green 66 SYB-15-B
    CL-185/10 CL-185/10 17.55 18.04 1372 2.2 Yellow 66 SYB-15-B
    CL-185/30 CL-185/30 18.59 19 1422 2.3 White 66 SYB-15-B
    CL-210/10 CL-210/10 19.52 20.1 1524 3.1 Pink 89 SYB-26-B
    CL-210/25 CL-210/25 20.05 20.94 1549 3.2 Purple 89 SYB-26-B
    CL-210/30 CL-210/30 20.11 20.94 1549 3.2 Purple 89 SYB-26-B
    CL-240/30 CL-240/30 21.48 22.09 1626 3.3 Blue 89 SYB-26-B
    CL-240/45 CL-240/45 22.1 22.69 1651 3.4 Green 89 SYB-26-B
    CL-300/15 CL-300/15 22.7 23.05 1651 3.4 Green 89 SYB-26-B
    CL-300/20 CL-300/20 23.29 23.79 1676 4 Black 89 SYB-26-B
    CL-300/25 CL-300/25 23.5 24.45 1702 4 White 89 SYB-26-B
    CL-300/50 CL-300/50 23.8 25.54 1733 4.4 Pink 89 SYB-26-B
    CL-300/70 CL-300/70 25.08 25.54 1733 4.4 Pink 89 SYB-26-B
    CL-400/20 CL-400/20 26.43 27.29 2083 5.9 Blue 111 SYB-25-B
    CL-400/25 CL-400/25 - - 2083 6.2 Green 111 SYB-25-B
    CL-400/30 CL-400/30 27.3 27.69 2083 6.2 Yellow 111 SYB-25-B
    CL-400/50 CL-400/50 27.7 28.2 2083 6.2 Yellow 111 SYB-25-B
    CL-400/95 CL-400/95 28.88 29.46 2083 6.2 White 111 SYB-25-B
    CL-500/35 CL-500/35 29.87 30.68 2083 6.5 Pink 111 SYB-25-B
    CL-500/45 CL-500/45 30.69 31.12 2235 8.3 Purple 111 SYB-25-B
    CL-630/45 CL-630/45 33.39 34.44 2235 8.3 Yellow 111 SYB-25-B
    CL-630/55 CL-630/55 34.43 35.41 2235 9.1 Black 111 SYB-25-B
    CL-800/30 CL-800/30 37.53 38.51 2235 9.7 Purple 111 SYB-25-B
    CL-800/55 CL-800/55 38.25 39.55 2235 9.7 Red 111 SYB-25-B
    CL-800/100 CL-800/100 39 40 2235 - - 111 SYB-25-B
    In the model number:
    C = Suspension clamp;
    L = Preformed spiral type;
    The numbers = Applicable conductor model.
    This table only includes partial products. For other specifications, please contact the company.

    Types of Preformed Suspension Clamps for Aluminum Stranded Conductors (≤345kV)

    Company Product Model Industry Standard Model Applicable Conductor Type (GB1179-83, LJ Series) Applicable Conductor Diameter Range - Min. (mm) Applicable Conductor Diameter Range - Max. (mm) Reference Cleat Length (mm) Cleat Weight (kg) Color Code Vertical Breaking Strength (kN) Optional Suspension Loop
    CL-95 CL-95 LJ-95 12.24 12.69 1016 1.1 Red 66 SYB-15-B
    CL-120 CL-120 LJ-120 14.11 14.56 1118 1.7 White 66 SYB-15-B
    CL-150 CL-150 LJ-150 15.75 16.39 1270 1.9 Red 66 SYB-15-B
    CL-185 CL-185 LJ-185 17.11 17.54 1372 2.1 Green 66 SYB-15-B
    CL-210 CL-210 LJ-210 18.59 19 1422 2.3 White 66 SYB-15-B
    CL-240 CL-240 LJ-240 19.52 20.1 1524 3.1 Orange 89 SYB-26-B
    CL-300 CL-300 LJ-300 22.1 22.69 1651 3.4 Green 89 SYB-26-B
    CL-400 CL-400 LJ-400 25.58 25.97 2082 5.5 Purple 89 SYB-26-B
    CL-500 CL-500 LJ-500 28.28 29.2 2083 6.2 Blue 111 SYB-25-B
    CL-630 CL-630 LJ-630 32 32.67 2235 8.8 White 111 SYB-25-B
    CL-800 CL-800 LJ-800 36.64 37.52 2235 9.7 Orange 111 SYB-25-B
    In the model number:
    C = Suspension clamp;
    L = Preformed spiral type;
    The numbers = Applicable aluminum stranded conductor model.
    This table only includes partial products. For other specifications, please contact the company.

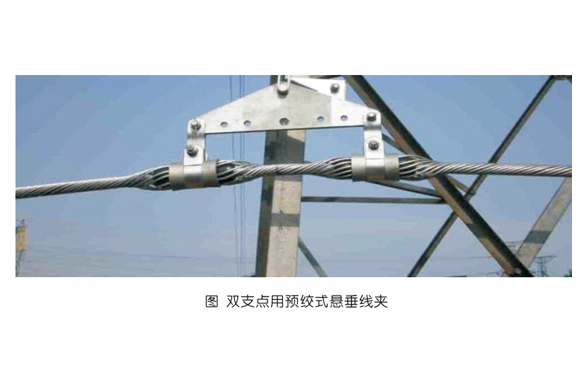

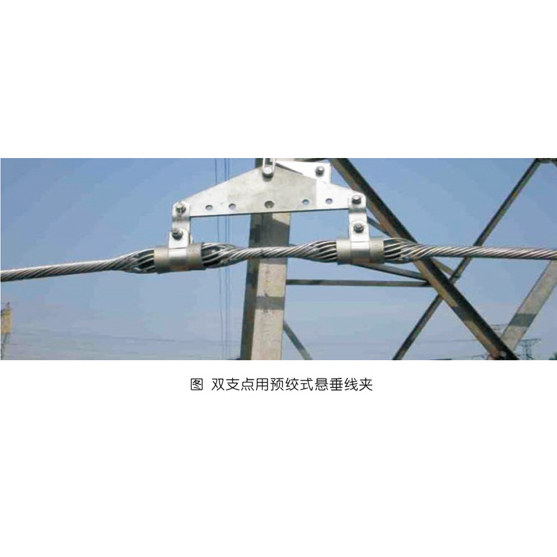

    Selection Table of Preformed Double Suspension Clamps for ACSR/Aluminum Stranded Conductors

    Company Product Model Min. Conductor Diam. (mm) Max. Conductor Diam. (mm) ACSR Type (LGJ/LGJF) Aluminum Stranded Type (LJ) Reference Cleat Length (mm) Cleat Weight (kg) Color Code Vertical Breaking Strength (kN) Optional Suspension Loop
    CL-35/6S 8.33 8.38 Jun-35 - 970 1.8 Red 132 SYB-15-B (Two Pieces)
    CL-50/8S 9.53 9.88 Aug-50 - 970 2 Pink-Purple 132 SYB-15-B (Two Pieces)
    CL-70/10S 11.05 11.45 Oct-70 - 1220 2 Blue 132 SYB-15-B (Two Pieces)
    CL-95 13.49 13.65 95/15 95 1350 2.8 Yellow 132 SYB-15-B (Two Pieces)
    CL-95/15S 13.79 14.78 95/15 - 1350 2.8 Yellow 132 SYB-15-B (Two Pieces)
    CL-95/20S 13.79 14.1 95/20 - 1470 3 Black 132 SYB-15-B (Two Pieces)
    CL-120/7S 14.11 14.56 120/7 - 1470 3 White 132 SYB-15-B (Two Pieces)
    CL-120/20S 14.57 15.14 120/20 120 1470 3 Brown 132 SYB-15-B (Two Pieces)
    CL-150/8S 15.75 16.39 150/8 - 1680 3.1 Red 132 SYB-15-B (Two Pieces)
    CL-150/25S 16.4 17.1 150/25 - 1830 3.6 Blue 132 SYB-15-B (Two Pieces)
    CL-185/10S 17.11 17.54 185/10 185 1830 3.6 Green 132 SYB-15-B (Two Pieces)
    CL-185/25S 17.55 18.04 185/25 - 1830 3.8 Yellow 132 SYB-15-B (Two Pieces)
    CL-185/30S 18.59 19 185/30 210 1830 3.8 White 132 SYB-15-B (Two Pieces)
    CL-210/10S 19.52 20.1 210/10 - 1980 5.2 Pink 178 SYB-26-B (Two Pieces)
    CL-210/25S 19.52 20.1 210/25 240 1980 5.4 Purple 178 SYB-26-B (Two Pieces)
    CL-210/30S 20.11 20.94 210/30 - 1980 5.4 Purple 178 SYB-26-B (Two Pieces)
    CL-240/30S 21.48 22.09 240/30 300 2080 5.6 Green 178 SYB-26-B (Two Pieces)
    CL-240/55S 22.1 22.6 240/55 - 2080 5.6 Green 178 SYB-26-B (Two Pieces)
    CL-300/15S 22.7 23.05 300/15 - 2080 5.6 Black 178 SYB-26-B (Two Pieces)
    CL-300/20S 23.29 23.79 300/20 500 2290 5.8 Green 178 SYB-26-B (Two Pieces)
    CL-300/25S 23.5 24.45 300/25 - 2290 6 White 178 SYB-26-B (Two Pieces)
    CL-300/50S 23.8 25.54 300/50 - 2290 6 Pink 178 SYB-26-B (Two Pieces)
    CL-300/70S 25.08 25.54 300/70 - 2290 6.6 Pink 178 SYB-26-B (Two Pieces)
    In the model number:
    C = Suspension clamp;
    L = Preformed spiral type;
    The numbers = Applicable conductor model.
    This table only includes partial products. For other specifications, please contact the company.

    Preformed Ground Wire Suspension Clamps (SCL)
    Preformed Suspension Clamps for Steel Strands

    Table CO1-04
    Table CO1-5
    Table CO1-6
    Table CO1-7

    Selection Table of Preformed Ground Wire Suspension Clamps for Steel Strands

    Company Product Model / Support Clamp Type Industry Standard Model Applicable Conductor Diam. Range - Min. (mm) Applicable Conductor Diam. Range - Max. (mm) Applicable Conductor Outer Diam. (GB 1200-88, mm) Reference Clamp Length (mm) Clamp Weight (kg) Color Code Vertical Breaking Strength (kN) Optional Suspension Loop
    SCL-1/G CL-1/G 6.7 6.9 7 660 1.2 Blue 68/136 SYB-15-B
    SCL-1/GZ CL-1/GZ 6.7 6.9 7 660 1.2 Black 68/136 SYB-15-B
    SCL-4/G CL-4/G 7.72 8.01 7.8(35) 960 1.1 Black 68/136 SYB-15-B
    SCL-6/G CL-6/G 8.23 8.69 8.4 960 1.2 Purple 68/136 SYB-15-B
    SCL-7/G CL-7/G 8.7 9.03 9.0(50) 960 1.2 Brown 68/136 SYB-15-B
    SCL-7/GS CL-7/GS 8.7 9.03 9.0(50) 960 2.2 Brown 68/136 SYB-15-B
    SCL-9/G CL-9/G 9.53 9.89 9.6 910 1.7 Blue 68/136 SYB-15-B
    SCL-10/G CL-10/G 10.28 10.62 10 910 1.8 Red 68/136 SYB-15-B
    SCL-10/GS CL-10/GS 10.28 10.62 10 1220 2.7 Brown 68/136 SYB-15-B
    SCL-12/G CL-12/G 10.65 11.03 11.0(70) 910 1.7 Black 68/136 SYB-15-B
    SCL-12/GS CL-12/GS 10.65 11.03 11.0(70) 1220 2.9 Black 68/136 SYB-15-B
    SCL-13/G CL-13/G 11.04 11.43 11.4 910 1.7 Green 68/136 SYB-15-B
    SCL-15/G CL-15/G 11.62 12 12 910 1.8 Brown 68/136 SYB-15-B
    SCL-16/G CL-16/G 12.23 12.72 12.5(95) 1120 3 Brown 68/136 SYB-15-B
    SCL-16/GS CL-16/GS 12.23 12.72 12.5(95) 1440 3.9 Blue 68/136 SYB-15-B
    SCL-18/G CL-18/G - - 14.8 1440 - - 68/136 SYB-15-B
    In the model number:
    C = Suspension clamp;
    L = Preformed spiral type;
    Suffix G = For steel strands; S = For double-pivot applications.
    The vertical breaking strength is uniformly 68 kN / 136 kN for all listed models.

    Selection Table of Preformed Ground Wire Suspension Clamps for Aluminum-Clad Steel Strands and High-Conductivity ACSR

    Company Product Model Industry Standard Model Applicable Conductor Diam. Range (mm) Applicable High-Conductivity ACSR Model Reference Clamp Length (mm) Clamp Weight (kg) Color Code Vertical Breaking Strength (kN) Optional Suspension Loop
    (Single/Double Pivot)
    SCL-720LB/1J720LB-BS - 6.90~7.20 - 660/960 1.1/2.0 Blue 68/136 SYB-15-B
    (LB: Al-Clad Steel; BS: Double Pivot)
    SCL-740LB/1J740LB-BS - 7.21~7.47 - 660/960 1.1/2.0 Red 68/136 SYB-15-B
    SCL-770LB/1J770LB-BS - 7.48~7.70 - 660/960 1.1/2.0 Black 68/136 SYB-15-B
    SCL-800LB/1J800LB-BS - 7.71~8.01 - 660/960 1.1/2.0 Brown 68/136 SYB-15-B
    SCL-830LB/1J830LB-BS - 8.02~8.31 - 660/960 1.1/2.0 Purple 68/136 SYB-15-B
    SCL-860LB/1J860LB-BS - 8.32~8.69 - 660/960 1.1/2.1 Green 68/136 SYB-15-B
    SCL-900LB/1J900LB-BS - 8.70~9.03 - 660/960 1.1/2.1 Black 68/136 SYB-15-B
    SCL-950LB/1J950LB-BS - 9.04~9.50 - 660/960 1.2/2.2 Brown 68/136 SYB-15-B
    SCL-990LB/1J990LB-BS - 9.51~9.89 - 660/960 1.2/2.2 Red 68/136 SYB-15-B
    SCL-1025LB/1J1025LB-BS - 9.90~10.27 50/30 914/1219 1.6/2.7 Red 68/136 SYB-15-B
    SCL-1061LB/1J1061LB-BS - 10.28~10.62 70/45 914/1219 1.6/2.7 Brown 68/136 SYB-15-B
    SCL-1100LB/1J1100LB-BS - 10.63~11.03 70/70 914/1219 1.6/2.7 Orange 68/136 SYB-15-B
    SCL-1143LB/1J1143LB-BS - 11.04~11.43 - 914/1219 1.6/2.7 Purple 68/136 SYB-15-B
    SCL-1190LB/1J1190LB-BS - 11.44~11.9 50/30 914/1219 1.7/2.8 Green 68/136 SYB-15-B
    SCL-1220LB/1J1220LB-BS - 11.96~12.22 70/40 914/1219 1.7/2.8 Blue 68/136 SYB-15-B
    SCL-1670LB/1J1670LB-BS - 13.75~13.78 95/55 1247/1580 1.9/2.6 Yellow 68/346 SYB-15-B
    SCL-1750LB/1J1750LB-BS - 15.49~15.99 70/55 1310/1650 3.0/3.1 Red 68/346 SYB-15-B
    SCL-1880LB/1J1880LB-BS - 17.11~18.04 37/70 1310/1830 5.2/5.7 - 68/346 SYB-15-B
    In the model number:
    C = Suspension clamp;
    L = Preformed spiral type;
    Suffix LB = For aluminum-clad steel strands; S = For double-pivot applications.

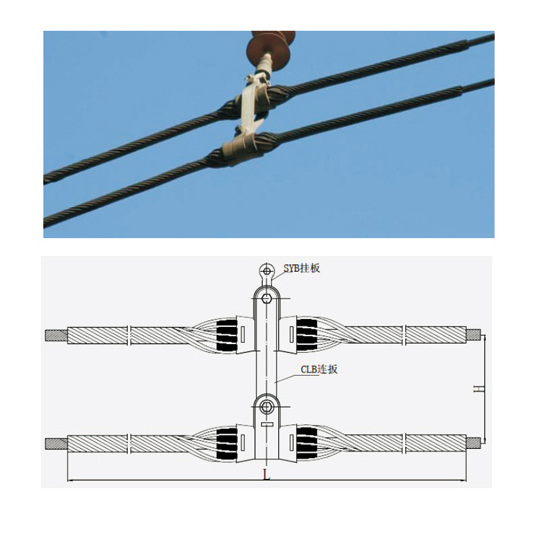

    Selection Table of Preformed Vertical Double-Bundle Suspension Clamps for ACSR

    Company Product Model Industry Standard Model (GB1179-83, LGJ/LGJF) Applicable Conductor Diameter Range (mm) - Min. / Max. L (mm) H (mm) Color Code Vertical Breaking Strength (kN) Optional Suspension Plate
    SCLC-240/30 (240/30) 21.48 / 22.09 1626 400 Blue 120 CLB-400
    SCLC-300/20 300/20 22.29 / 23.79 1676 400 Black 120 CLB-400
    SCLC-300/25 300/25 23.29 / 23.79 1676 400 Black 120 CLB-400
    SCLC-300/40 300/40 23.80 / 24.45 1702 400 White 120 CLB-400
    SCLC-400/20 400/20 26.43 / 27.29 2083 400 Blue 160 CLB-400
    SCLC-400/35 400/35 27.30 / 27.69 2083 400 Green 160 CLB-400
    SCLC-400/50 400/50 27.70 / 28.20 2083 400 Green 160 CLB-400
    SCLC-500/35 500/35 29.87 / 30.68 2083 500 Orange 160 CLB-500
    SCLC-500/65 500/65 30.69 / 31.14 2235 600 Purple 160 CLB-600
    SCLC-630/45 630/45 33.39 / 34.42 2235 600 Yellow 160 CLB-600
    Notes:
    In the model number:
    C (first) = Suspension clamp;
    L = Preformed spiral type;
    C (last) = Vertical double bundle.
    Diagram Description:

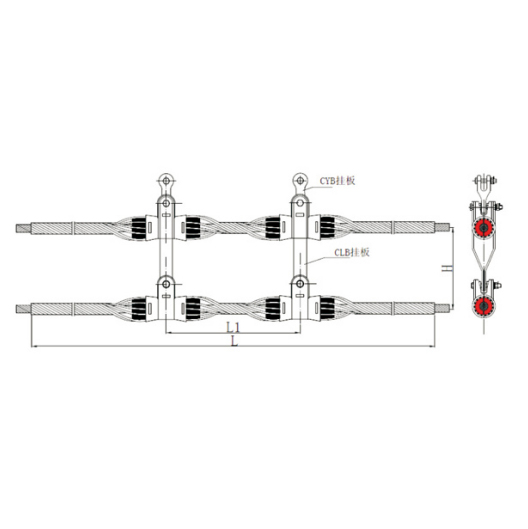

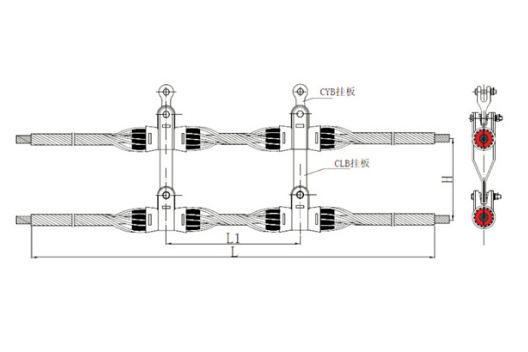

    Figure: Vertical Double-Bundle Double-Pivot Preformed Suspension Clamp (Components include CTB plate, CLB plate, etc.)

    Selection Table of Preformed Vertical Double-Bundle Double-Pivot Suspension Clamps for ACSR

    Company Product Model Applicable Conductor Type (GB1179-83) Applicable Conductor Diameter Range (mm) - Min. / Max. L (mm) L1 Reference Spacing (mm) H (mm) Color Code Vertical Breaking Strength (kN) Optional Suspension Loop
    SCLCS-240/30 240/30 21.48 / 22.09 2080 450 400 Blue 240 CLB-400
    SCLCS-240/40 240/40 21.48 / 22.09 2080 450 400 Blue 240 CLB-400
    SCLCS-300/20 300/20 22.29 / 23.79 2290 550 400 Black 240 CLB-400
    SCLCS-300/25 300/25 22.29 / 23.79 2290 550 400 Black 240 CLB-400
    SCLCS-300/40 300/40 23.80 / 24.45 2290 550 400 White 240 CLB-400
    SCLCS-400/20 400/20 26.43 / 27.29 2740 650 400 Blue 320 CLB-400
    SCLCS-400/35 400/35 26.43 / 27.29 2740 650 400 Blue 320 CLB-400
    SCLCS-400/50 400/50 27.30 / 27.69 2740 650 400 Green 320 CLB-400
    SCLCS-500/35 500/35 29.87 / 30.68 2740 650 500 Orange 320 CLB-500
    SCLCS-500/45 500/45 29.87 / 30.68 2740 650 500 Orange 320 CLB-500
    SCLCS-500/65 500/65 30.69 / 31.14 2970 700 600 Purple 320 CLB-600
    SCLCS-630/45 630/45 33.39 / 34.42 2970 800 600 Yellow 320 CLB-600
    Notes:
    In the model number:
    C = Suspension clamp;
    L = Preformed spiral type;
    C = Vertical double bundle;
    S = Double-pivot.

    Leave Your Message
